Laminated 3.0 IPS LCD screen kit for Nintendo Game Boy Advance SP no solder drop in backlight display [GBA SP AGS] | HISPEEDIDO

Features:

- Drop in IPS LCD screen for Nintendo Game Boy Advance SP consoles.
- No shell cutting, does not require IPS ready shell
- Brightness, colour and display mode touch sensors built in
- 3.00" screen size with traditional Advance SP logo on glass
- Optional single wire to solder for OSD menu controls.

Description:

This drop in IPS screen upgrade from Hispeedido gives you a bright and vibrant display upgrade, without any need for modifications, special housing shells, or soldering tools.

Fitting this IPS screen kit is super simple, there is no PCBS to attach, no ribbon additional ribbon cables, no touch sensors to mount, no screen lens to align, it is a drop in plug and play upgrade.

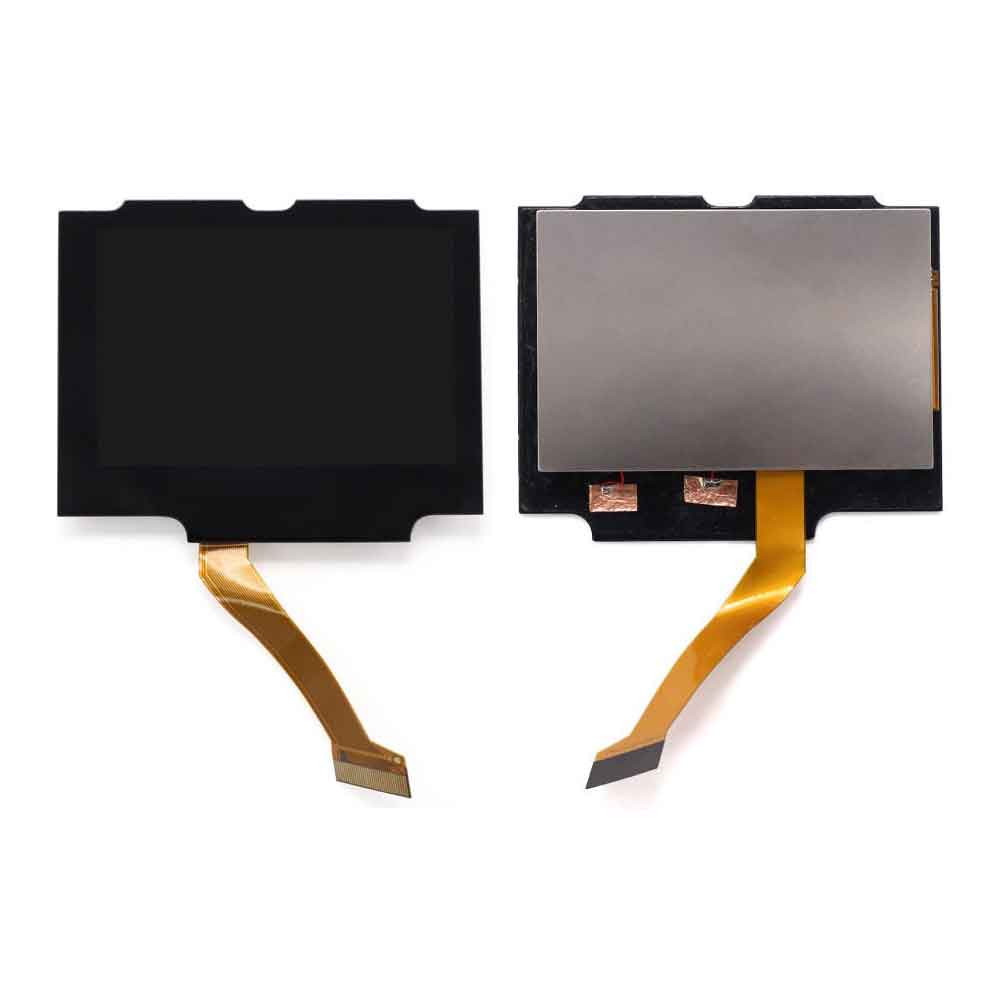

The IPS screen includes the LCD panel with laminated screen lens and ribbon cable all as one single unit, and that is it, you can choose to install a single wire included with the screen to allow you to control the brightness from the original button on the console and access an OSD menu, but this is completely optional and not required.

This upgrade will drop straight into most shells, cutting of a regular shell is not required, and an IPS ready shell is not needed.

The screen upgrade supports 15 levels of brightness, 8 different colour modes and 4 display modes, default display mode, retro pixel effect and 2 scan line effects.

NOTE: You should bench test the screen before installation to check for any issues, this helps us to support your warranty, you should leave the adhesive backing and protective film on the product until you are satisfied it is working correctly and there are no pixel faults etc, if you discover any faults please send a picture of the bench test to [email protected] for assistance.

How to use the touch sensors:

- Tap the right sensor to cycle the brightness levels.
- Press and hold the right sensor to cycle the 8 colour modes
- Press and hold the left sensor to cycle pixel effect modes.

Installing the soldered wire is optional (single wire from the LCD ribbon to Q12B), if fitted this will allow brightness control from the original brightness button and provide access to an OSD menu.

Other items needed which are not included:  Basic tools to open the game boy and fit this screen, soldering iron (optional), non of these items are included.

Please note that the LCD screen and ribbon cable require care to install and are fragile in nature, they are also more susceptible to damage once installed if the console is dropped, LCD screens can crack under pressure or with a impact, our warranty does not cover accidental / user damage of any components in this kit. Replacement parts will be available to purchase separately in the near future.
